400W 12V Flexible Solar Marine Kit w/ Rover Li 40 Amp MPPT Solar Charge Controller
Description
Renogyās Marine Kits are back and better than ever! Adding solar to your boat is a breeze since we've included the necessary components to get you started on your solar quest to eliminate the burden of dead batteries and maximize your fun under the sun. Unlike traditional gas-generators, Renogyās Marine Kits will silently charge your batteries and ensure theyāre topped off just right. Included in the kit is 2 pieces 200W flexible solar panel, rover Li 40 Amp MPPT solar charge controller. If weight is a concern for your boat, have no fear! Our 400W Flexible panels are thin, lightweight and take up minimal space.
If you have any questions regarding this product, please submit a case.
Key Features
Solar Panel- The Renogy 2x200W Flexible Monocrystalline Solar Panel can provide an average of 2000 Watt-hours of electricity per day (caculates with 5 hours sunlight).
- The solar panel suits most curved surfaces as it is bendable within 240 degrees. It weighs only 1/2 of the rigid panel and presents an all-black glare-free appearance.
- It is equipped with half-cut PERC cell technology that enhances solar light capture and electrical performance, therefore improving the output efficiency.
- This solar panel accomplishes waterproof junction box and solar connectors. Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind.
- The panel comes with pre-drilled mounting holes and 10 AWG 20 Ft long solar connector cables for quick and easy installation.
Charge Controller
- Capable of automatically detecting 12V/24V battery systems.
- This crucial system component can also work with all popular battery types, such as Sealed, AGM, Gel, Flooded and Lithium.
- LCD screen and multiple LED indicators for displaying system operation information; customizable parameters; and error codes.
- RS232 port allows the Rover to communicate with the BT-1 Bluetooth module; which can pair with the Renogy DC HOME smartphone app.
- Renogy 40Ah charge controller has 4-stage charging (majority, increasing, floating and equalisation) of lead-acid batteries and 2-stage charging (most and increase) for lithium batteries as well as lithium reactivation.
Package Includes
|
200W Flexible Solar Panel
2 x |
Rover Li 40 Amp MPPT Solar Charge Controller
1 x |
|
Renogy 20FT 10AWG Adaptor kit
1 x |
Renogy 8ft 10AWG Tray Cables
1 x |
|
2 to 1 Solar Branch Connectors MMF+FFM Pair
1 x |
Voyager Charge Controller Temperature Sensor
1 x |
| Flexible 200 Watt Solar Panel | Rover Li 40 Amp MPPT Solar Charge Controller |
|---|---|
| Maximum Power at STC*: 200 W | Nominal Voltage: 12/24V Auto-Detect |
| Optimum Operating Voltage (Vmp): 20.1V | Rated Charge Current: 40A |
| Optimum Operating Current (Imp): 10.02A | Max. PV Input Voltage: 100VDC |
| Short-Circuit Current (Isc): 10.74A | Max. PV Input Power: 12V/520W, 24V/1040W |
| Open Circuit Voltage (Voc): 23.9V | Protection Level: IP32 |
| Maximum System Voltage: 600V DC | Power Consumption: ļ¼ļ¼100mA/12V; ļ¼58mA/24V |
| Weight: 4.9 kg / 10.8 lbs | Weight: 2.0kg / 4.41 lb |
| Dimensions: 160.5 x 74.8 x 0.3 cm /(63.2 x 29.4 x 0.1 in) | Dimensions: 238 x 173 x 72.5 mm; 9.37 x 6.81 x 2.85 in |

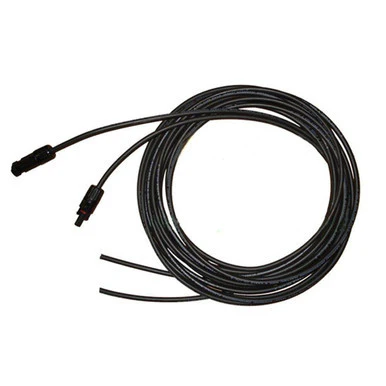

| 20ft 10AWG MC4 Adaptor Kit (A Pair) | 8ft 10AWG Tray Cables (A Pair) |
|---|---|
| Length: 20ft | Length: 8ft |
| AWG: 10 | AWG: 10 |
| Rating Voltage: 600/1000V | Rating Voltage: 600/1000V |
| Temperature: -40Ā°F to +185Ā°F | Temperature: -40Ā°F to +185Ā°F |
| 2 to 1 Solar Branch Connectors MMF+FFM a Pair | Temperature Sensor |
|---|---|
| Withstanding voltage: 1000V DC(TUV); 600V(UL) | Cable: 22AWG, 2-Pin Conductor |
| Contact Resistance: 1M | Cable Length: 9.8 ft/ 3M |
Warranty Information
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
|||
 |
|||
 |
|||
| Ā | |||
| Rover Li 40 Amp MPPT Solar Charge Controller | |||
| Renogy Flexible 200W Mono Solar Panel Specs | |||
